EMS

Services & Products offered at Manu Electricals

Backed by a dedicated team of industry experts, we offer SMT facility that is excellent in all aspects. We conduct the given service by productively utilizing high Speed SAMSUNG SM481 machine with 39,000 rated CPH having capacity of mounting 0402 & BGA components. Aside from this, we use re-flow oven 8 heating + 2 cooling zone, having compatibility with lead free soldering.

Baked by a dedicated team of industry experts, we offer SMT facility that is excellent in all aspects. We conduct the given service by productively utilizing high Speed SAMSUNG SM481 machine with 39,000 ratd CPH having capacity of mounting 0402 & BGA components. Aside from this, we use re-flow ovenn 8 heating + 2 cooling zone, having compatibility with lead free soldering.

Environmental Controls for Consistent Quality:

Tightly controlled temperature and humidity inside our production facility ensures no environmental impact on the manufacturing process. We maintain environmental conditidions of 65% RH and 24 deg C room temperatures within our SMT manufacturing shop floor.

We offer a Flexible, High technology, High mix environment:

• SMT Line capable of handling PCB's up to 50 mm x 50 mm and 610 mm x 510 mm

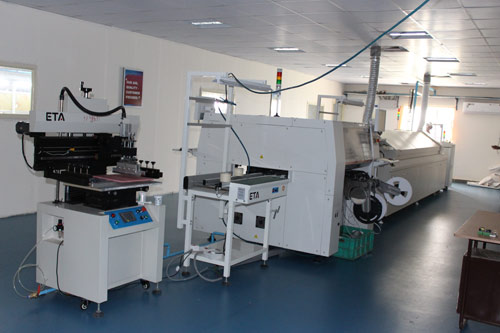

• ETA high accuracy printer

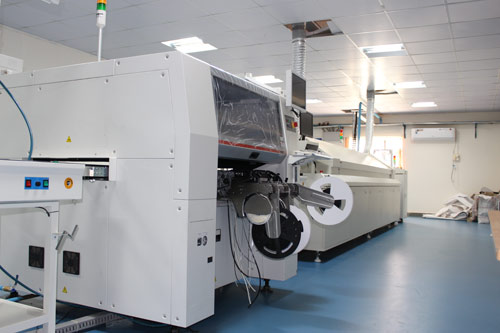

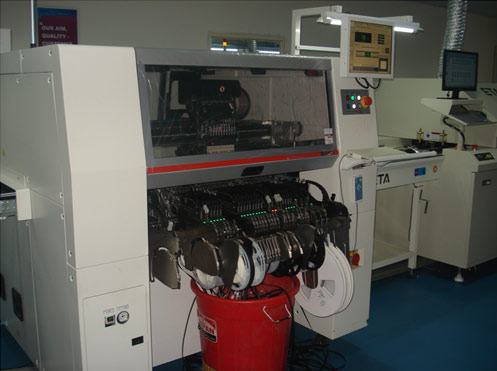

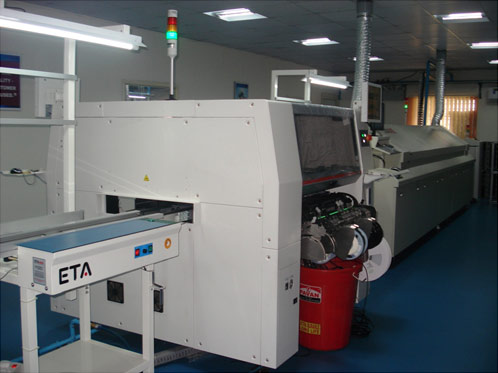

• SAMSUNG SM481 High Speed Multi mounter handling compenents from 0402 to 45 mm square.
• Automated placement for single and double-sided assemblies.
• BGA & Micro BGA (Ball Grid Array)
• Fine-pitched QFPs, passives and SMT connetors.
• High-density, complex SMT, chip on chip.
• RoHS compliant SMT line.
• Single / Multi-layer boards.
• Flexible circuit assemblies.
• Low-volume to high-volume manufacturing.
• SAMSUNG SM481 High Speed Multi mounter with tray feeder, stick feeders handling components from 0402 to 45 mm including BGA, uBGA, SOIC, PLCC, QFP & CSPs.
• Trays handling capability and large number of feeders.
• Fine pitch connectors.

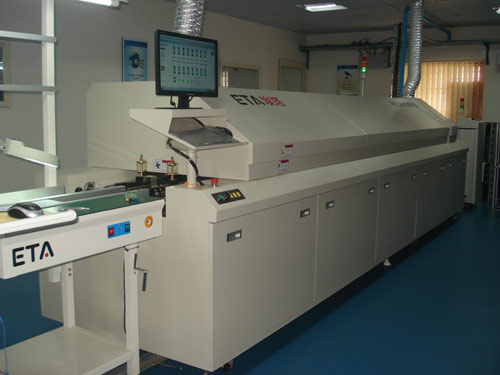

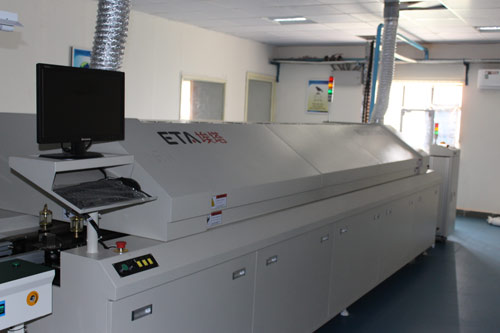

• ETS E8 Reflow Oven, the 8 heating zones and 2 cooling zones allow for optimal profile control.

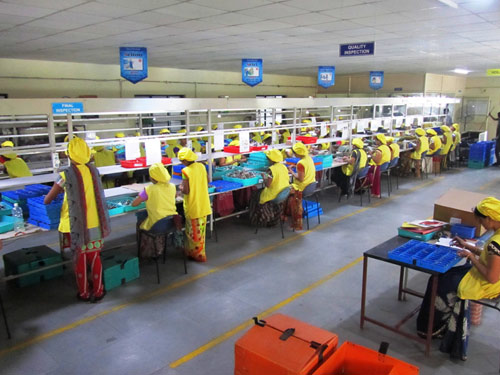

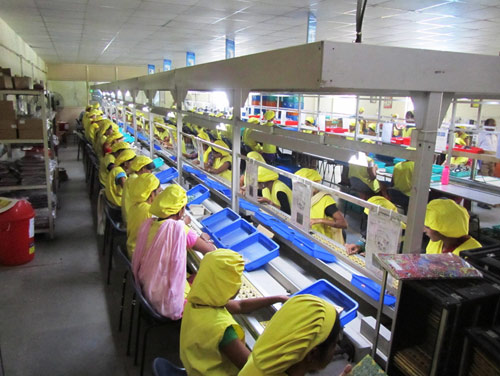

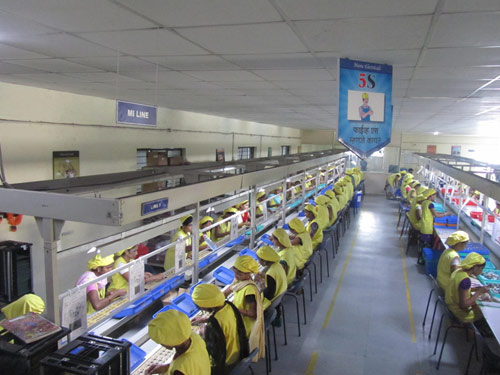

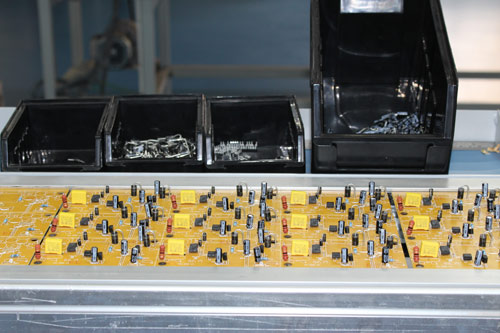

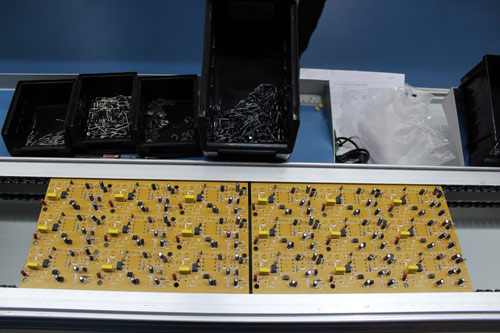

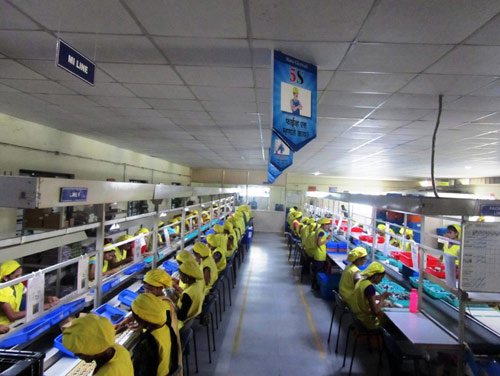

Manual Insertion And touch-up line:

Endowed with advanced techniques and devices we have positioned ourselves comfortably amongst the leading providers of MI facility. We provide electronic assembly service from planning to execution is conducted effocoently and promptly by our expert team, of industrious profesionals. As a quality conscious company, we make sure that every specification on quality laid down by the industry is strictly followed by our experts.

Specification:

• One Set of Manual insertion/touch up lines-20 ft.
• Provision of lead free soldering as well as with lead soldering.

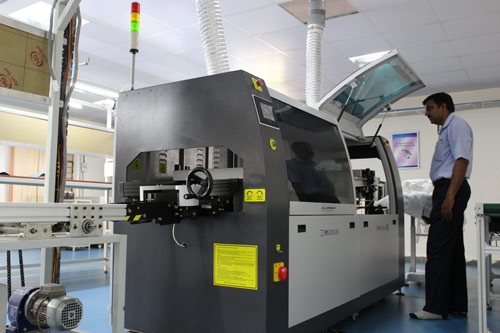

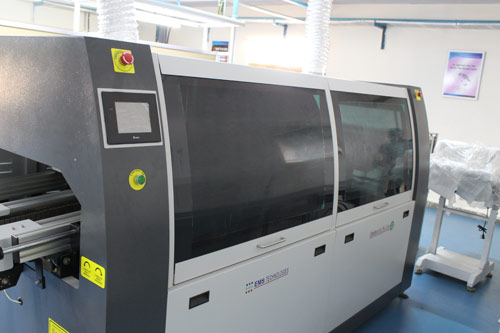

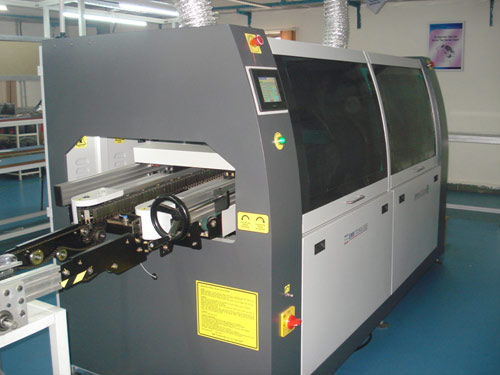

EMS Technologies Make wave soldering machine:

• Finger conveyor with Titanium fingers for better grip and trouble free transportation inside of machine.
• Conveyor width adjustment from 70 mm to 300 mm suitable for all PCB sizes.
• Foam Fluxer for appropriate flux application.
• Finger cleaning device with solvent tank for neat and clean PCB at the exit of machine.
• Two Hot air convection preheaters of 1mtr length for appropriae preheating.
• 225 KG Nitrided SS lead free solder pot.
• Separate Jet wave for solder SMD components in shadow area also.
• Wedge Type Centre Support from Preheater to Pot for PCBs having lng width and length.

Static-Safequarded Work Area:

We have also implemented comprehensive ESD precautionary measures to protect sensitive eletronics components from electrostatic discharge. Our total work station flooring covered with ESD safe 2mm, 3layer mat. Periodic ESD audits performed by our competent team ensures compliance to ESD across the manufacturing facility.
